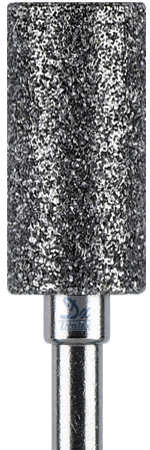

Diamond Burs - HP Standard
Dx Order No. :
H1103 (1103)
| Aplication |
 |
 |
| Grit |
 |
| Type | HP |
| Shape | Cylinder |
| Color | without ring |
| Ref. No. | H842/062 |
| ISO No. | 806 104 113 524 062 |
| Type ( Ø 1/10 mm ) | 062 |
| Head length ( mm ) | 12.0 mm |
| Shank ( mm ) | Ø 2.35 mm |
| Shank length ( mm ) | 46.0 mm |
| Maximum speed | 40,000 RPM |
| Packing unit | 4 |
|
Medium ( M ) | 91 ~ 126 μm |
 |
Coarse ( C ) | 107 ~ 151 μm |
 |
Super Coarse ( SC ) | 151~181 μm |
 |
Fine ( F ) | 40 ~ 60 μm |
 |
Extra Fine ( XF ) | 20 ~ 30 μm |
 |
Medium ( M ) | 91 ~ 126 μm |
 |
Coarse ( C ) | 107 ~ 151 μm |
 |
Fine ( F ) | 40 ~ 60 μm |
